• Table Working Surface: 9” x 48”
• T-Slots- (3): 5/8”
• Longitudinal Table Travel: 36”
• Cross Travel of Table: 12”
• Vertical Knee Travel: 16”
• Overarm (Ram) Travel: 12”
• Spindle Taper: R-8
• Spindle Speeds (Variable): 60 to 4200 RPM (Hi-Lo Ranges)
• Quill Feeds (3): .0015, .003, .006 IPR
• Quill Diameter: 3-3/8”
• Overarm/Head Swivel on Turret: 360 Degrees
• Head Tilt, Front to Back, +/- 45 Degrees
• Head Tilt, Left to Right, +/- 90 Degrees

Equipment

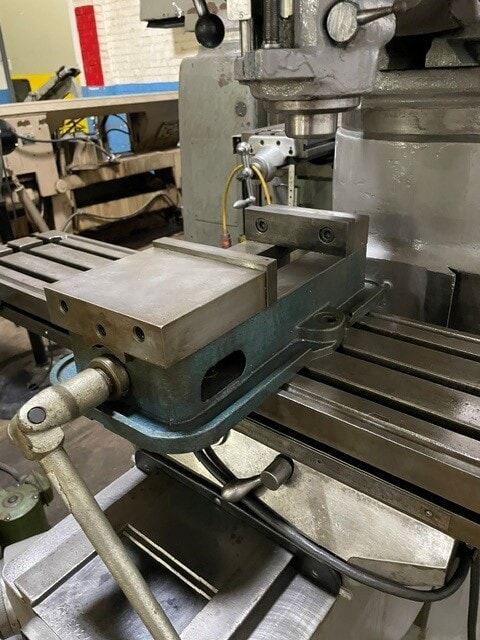

• 6” Lock-Type Milling Machine Vise

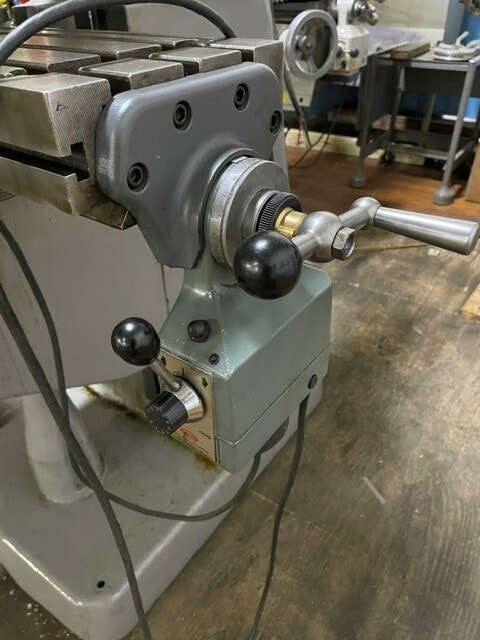

• Servo Style Longitudinal Power Table Feed
• Assorted R-8 Collets
• Clamping Kit
• One-Shot Lubrication
• Motor and Controls: 2 HP 3/60/230-460 Volt AC (Currently Set for 230 Volt Operation)
• Floor Space: 80” L-R x 60” F-B x 85” High
• Weight: 2,100 Lbs. (Approx.)

Stock #7801P
Serial #192457
