• Table Working Surface: 10” x 50”
• Longitudinal Table Travel: 35”
• Cross Table Travel: 15”
• Vertical Travel of Knee: 14”
• Spindle Taper: R-8
• Spindle Speeds (Variable): 60 to 4500 RPM
• Quill Travel: 5”
• Quill Feed Rates (3): .014, .04, .06 IPR
• Head Swivel: +/- 90 Degrees L-R
• Head Tilt (Front to Back): 45 Degrees
• Ram Travel: 18.5”
• Swivel of Ram: 360 Degrees

Equipment

• Box Knee ways
• Hardened & Ground Ways
• One-Shot Lubrication
• Fagor 2-Axis Digital Readout System
• (3) Servo Power Feed Units- Longitudinal. Cross & Elevation
• Power Draw Bar
• Work Light
• Motor and Controls: 3 HP 3/60/230-460 Volt AC- Currently Wired for 230 Volt Operation)
• Floor Space: 90” l-R x 72’ F-B x 90” High
• Weight: 3500 Lbs. (Approx,)

Stock #7804P

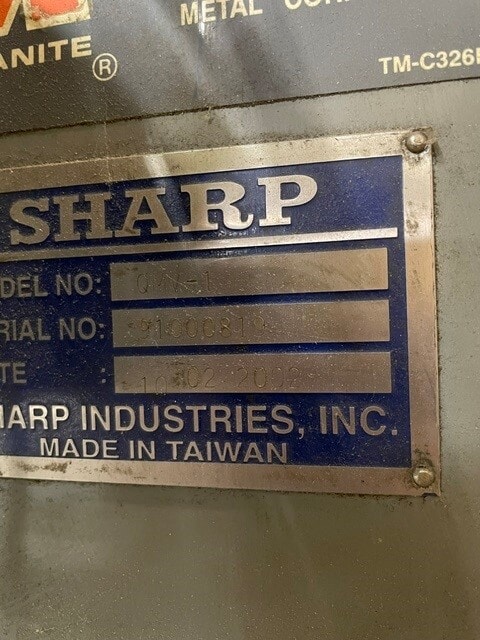

Serial #910000819
