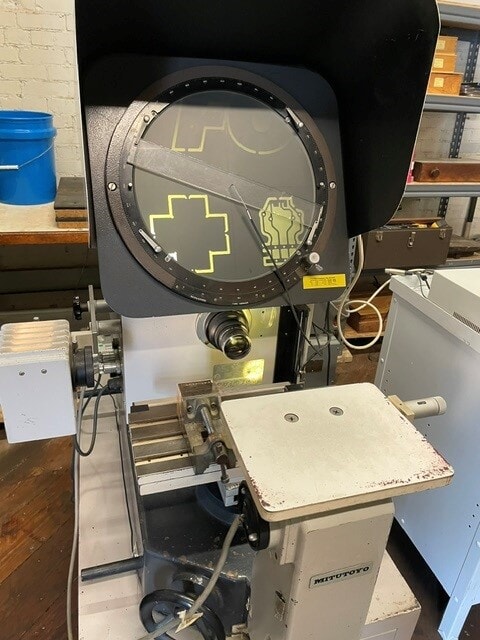

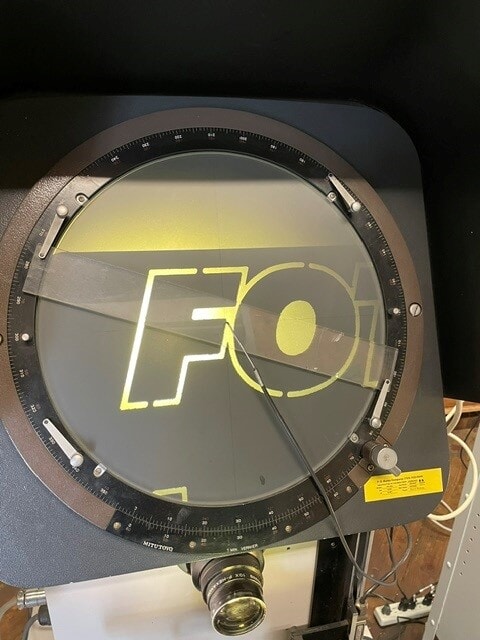

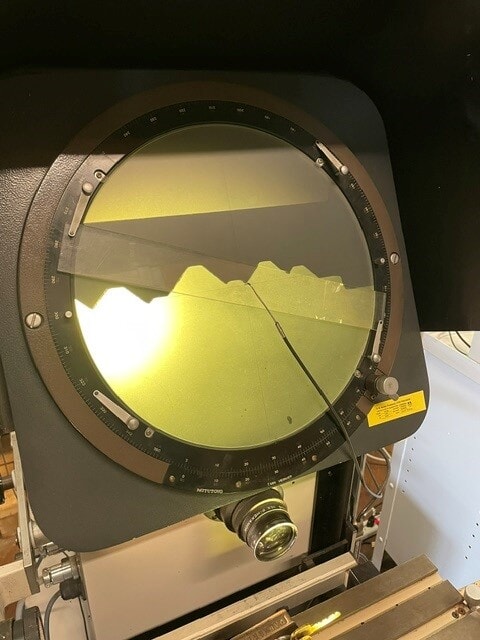

• Screen Diameter: 14”

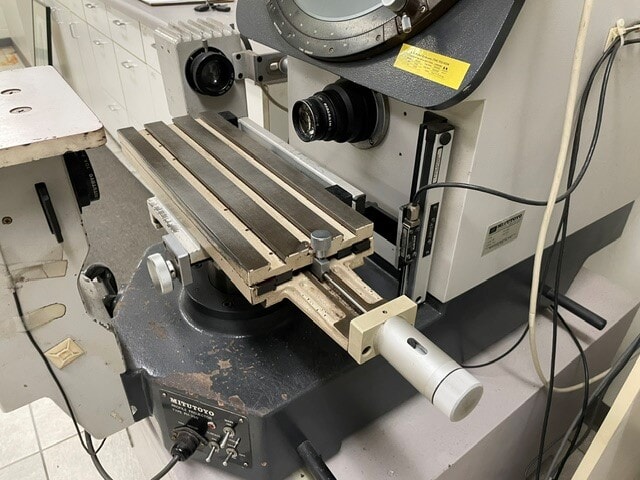

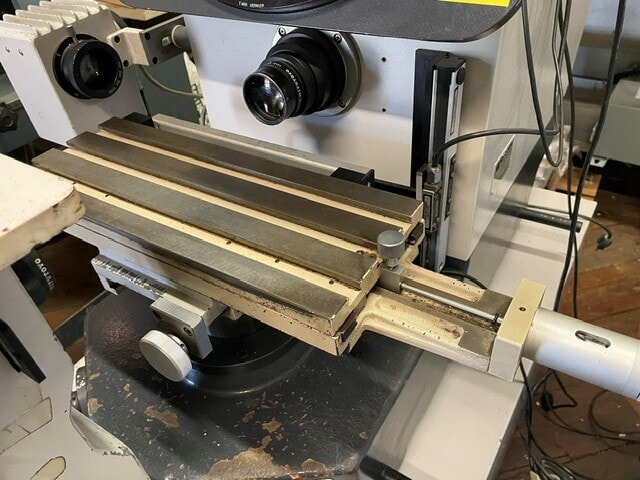

• Size of Table Stage: 15.7” x 5.9”
• Longitudinal Stage Travel: 6”
• Vertical Travel of Stage: 3”
• Cross Travel for Focusing: 3”
• Chart Rotation: 360 Degree for Angle Measuring

Equipment

• Tungsten Halogen Projection: 12V- 150 Watt

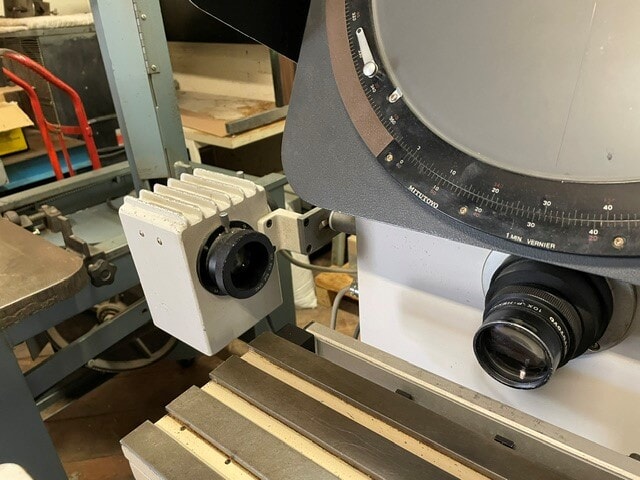

• Surface Illumination
• 10X & 20X Lens

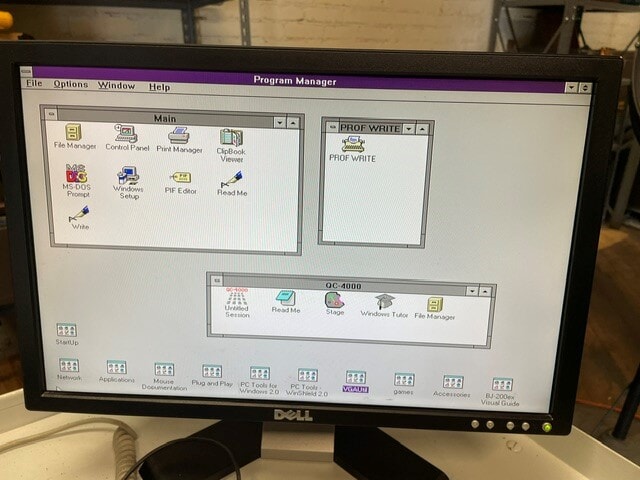

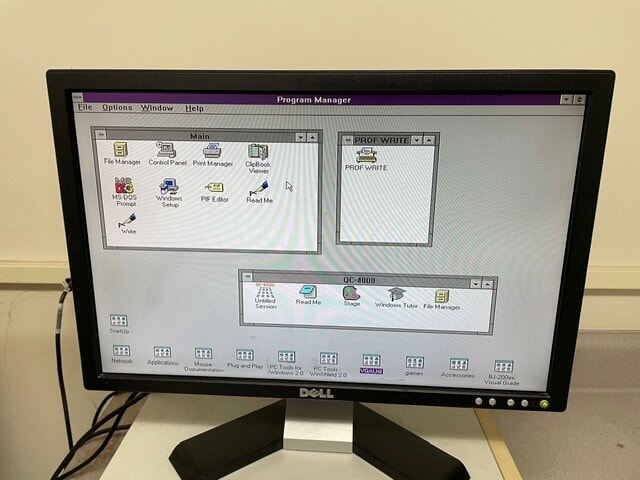

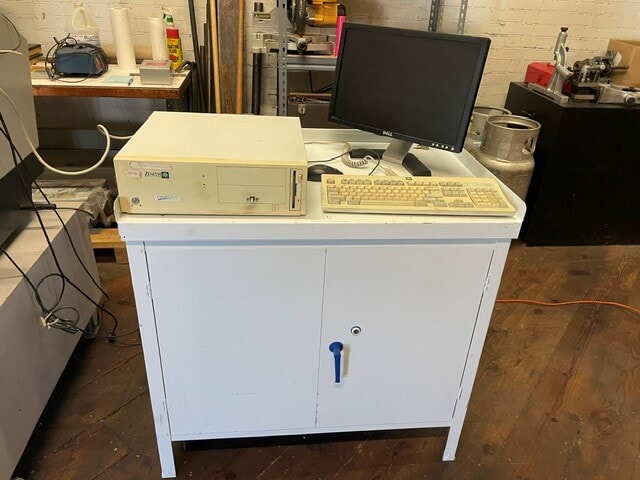

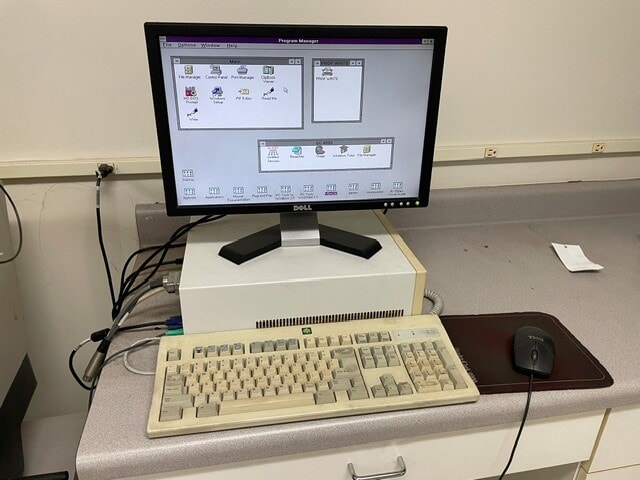

• QC-4000 Computational Digital Readout System with Acurite 2 um Glass Scales and Dell Screen and Computer with Edge Sensing

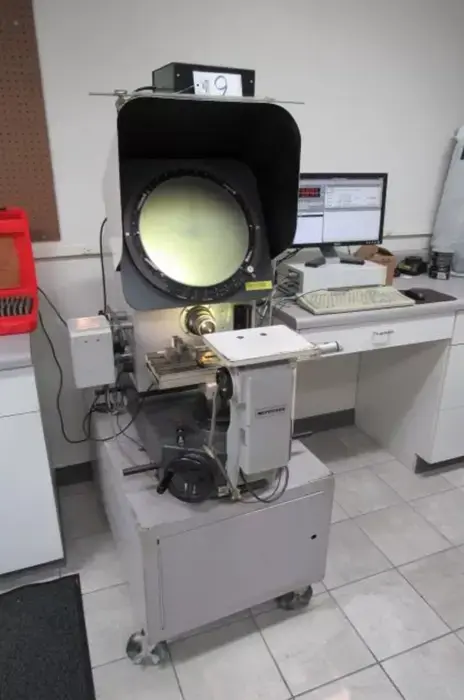

• Roller Cabinet Base
• Electrical: 1/60/120 Volt AC
• Floor Space: 30” L-R x 48” F-B x 68” H (on Cabinet Base)
• Weight: 250 Lbs. (Approx.)

Last Calibrated: 9/08/2025
