• Swing Over Bed: 14”
• Swing Over Cross Slide: 8”
• Swing in Removeable Gap: 25”
• Length of Gap: 12”
• Distance Between Centers: 40”
• Spindle Bore: 3-1/8”
• Spindle Nose: D1-8” Camlock

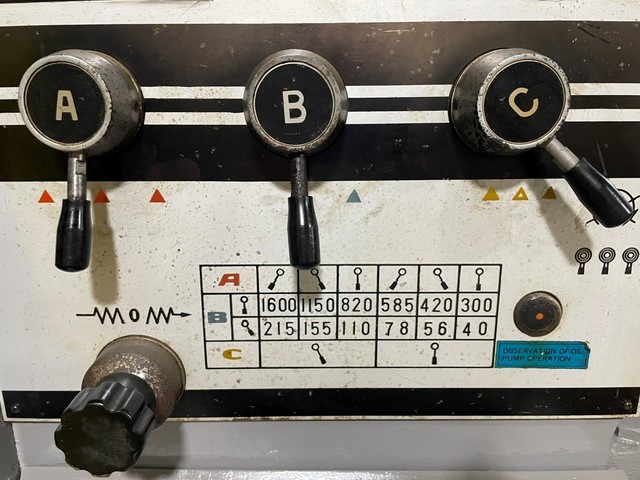

• Spindle Speeds (12): 40 to 1600 RPM
• Longitudinal Feed Range (48): .002 to 1.60 IPR
• Cross Feed Range (48): .001 to 0.80 IPR
• Thread Range (Inch) (45): 1-7/16 to 80 TPI
• Thread Range (Metric) (24): 0.05 to 20 mm

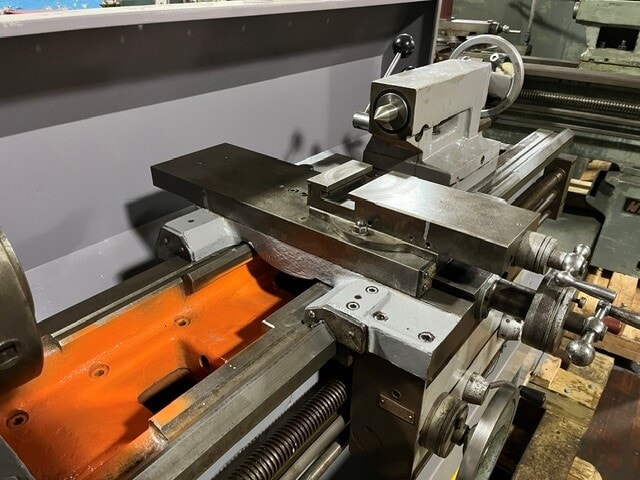

• Cross Slide Travel: 9”
• Compound Slide Travel: 4”
• Tailstock Taper: #4 MT
• Tailstock Spindle Travel: 5”
• Bed Width: 13-3/8”

Equipment

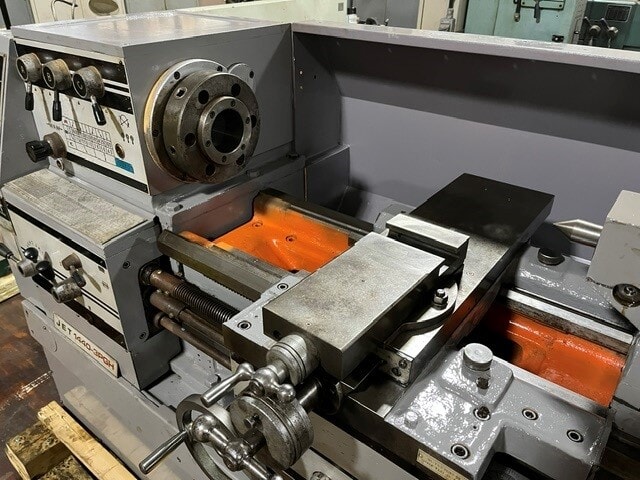

• 10” 3-Jaw Universal Chuck with (2) Piece Reversible Hard Top Jaws
• Wedge Style QC Toolpost
• Full Length Rear Splash Guard
• Threading Dial
• Foot Brake
• Motor and Controls: 7-1/2 HP 3/60/230-460 Volt AC
• Floor Space: 98” L-R x 40” F-B x 47” High
• Weight: 5200 Lbs. (Approx.)

Stock #7795P
Serial #92-317- JS 035
