• Swing Over Bedways: 15-3/4”
• Swing Over Cross Slide: 9”
• Swing in Removable Gap: 23”
• Distance Between Centers: 60”
• Spindle Bore: 2”
• Spindle Nose: D1-6 Camlock
• Spindle Speeds (8): 65 to 1800 RPM
• Threading
  • • Inch: 4 to 56 TPI
    • Metric: 0.25 to 6 mm

Equipment

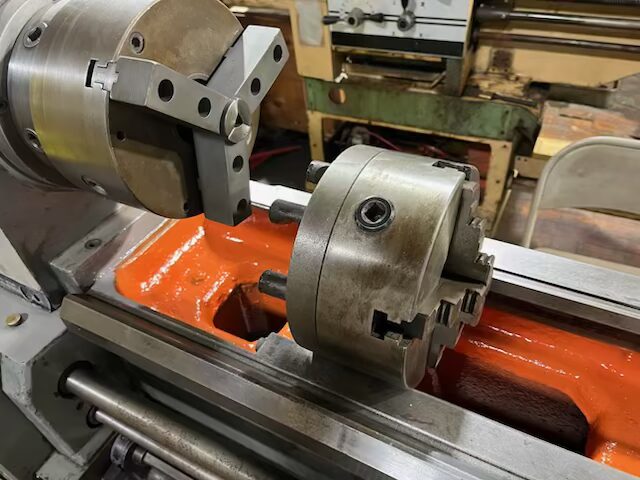

• 8” 3-Jaw Universal Chuck
• 8” 4-Jaw Chuck

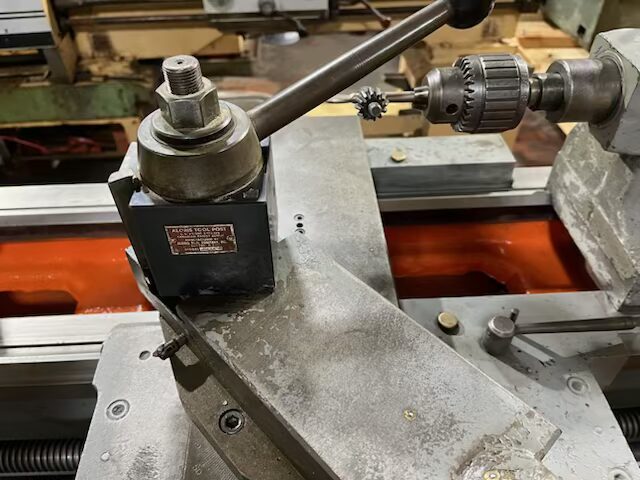

• Aloris Quick Change Toolpost with (2) Holders

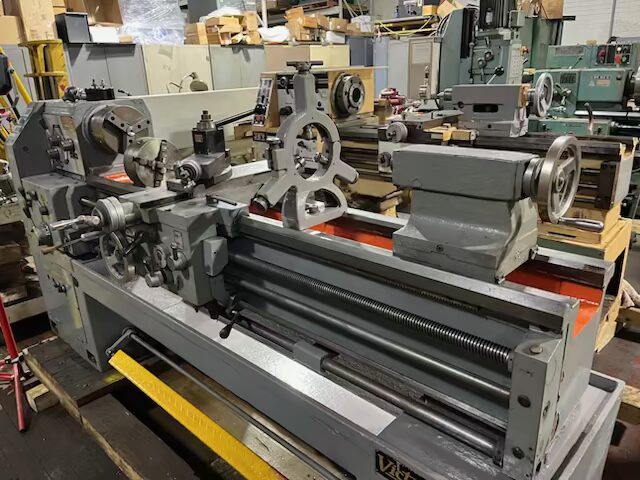

• Steady Rest
• Thread Dial
• Motor and Controls: 5 HP 5/60/220-440 Volt AC
• Floor Space: 105” L-R x 30” F-B x 60” High
• Weight: 3,600 Lbs. (Approx.)

Stock #7800P
Serial #58303
