• Swing Over Bed: 21”
• Swing in Removeable Gap: 27-61/64”
• Swing Over Cross Slide: 11-13/16”
• Distance Between Centers: 80”
• Spindle Speeds (24): 10 to 1600 RPM
• Spindle Nose: D1-8” Camlock
• Spindle Hole: 3-1/4”
• Spindle Inside Taper: #6 MT
• Thread Range (48)
  • Inch: 1/8 to 72 TPI
  • Metric: 0.25 to 224 mm
• Feed Range (84)
  • Longitudinal: 0.001 to 0.24 IPR
  • Cross: 0.00022 to 0.05512
• Lead Screw Diameter: 2”
• Cross Slide Travel: 13-3/8”
• Top Slide Travel: 5-3/4”

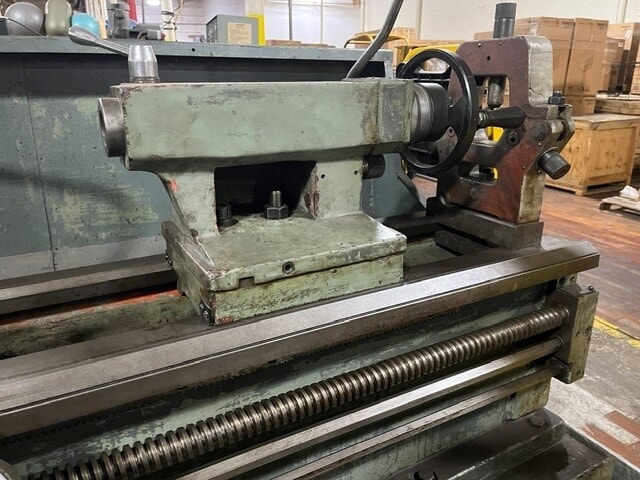

• Tailstock Spindle Travel: 6”
• Spindle Diameter: 2-61/64”
• Tailstock Spindle Taper: #5 MT

Equipment

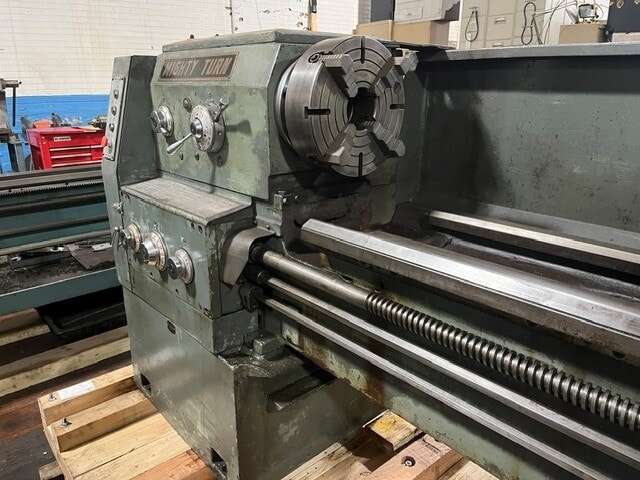

• 4-Jaw Independent Chuck

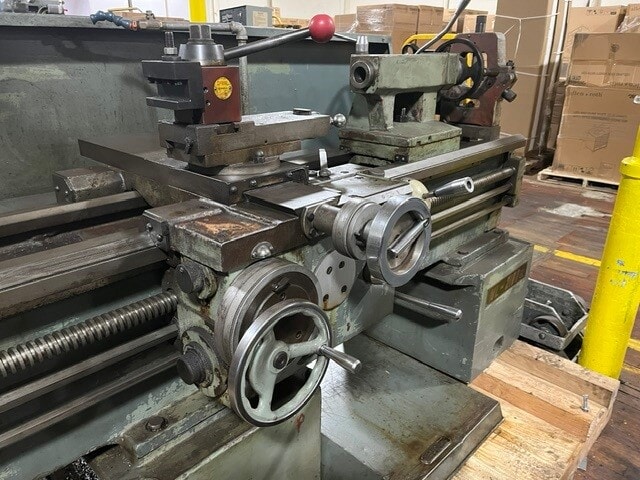

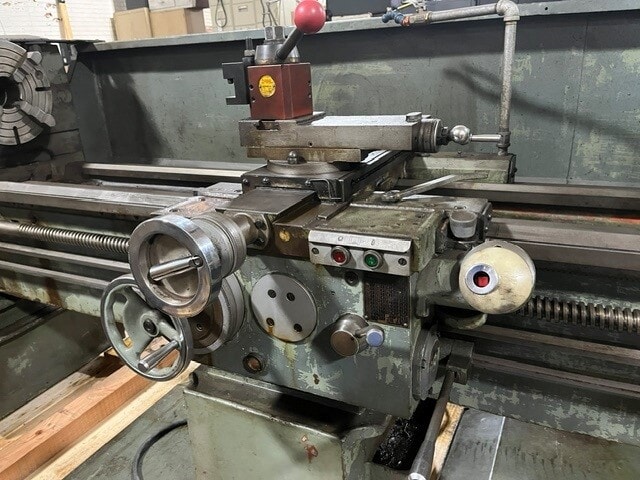

• Quick Change Toolpost with (1) Holder
• Rapid Traverse to Carriage & Cross Slide
• Steady Rest
• Full Length Rear Splash Guard
• (2) Pull-Out Chip Pans
• Coolant System

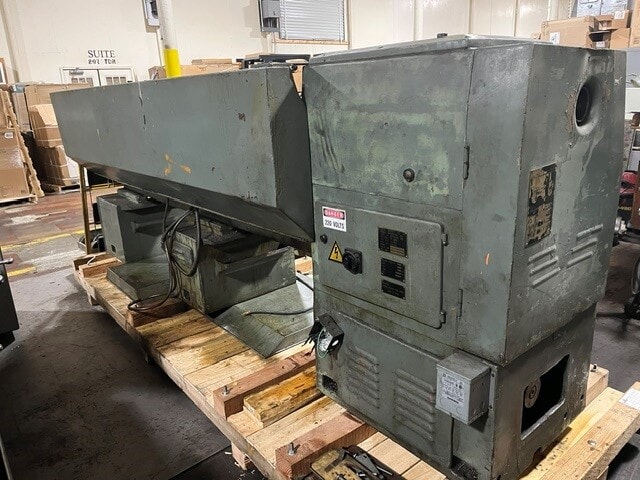

• Motor and Controls: 15 HP 3/60/220 Volt AC
• Floor Space: 156” L-R x 46” F-B x 65” High
• Weight: 6,000 Lbs. (Approx.)

Stock #7986P

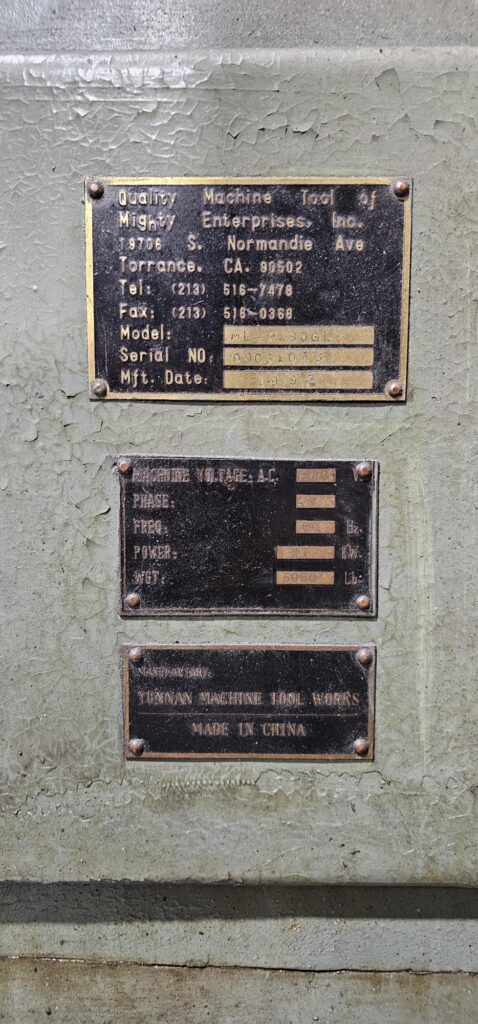

Serial #09081044
