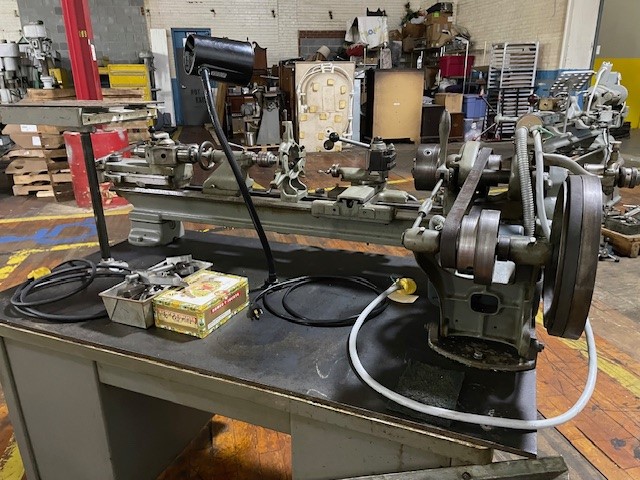

Machine - SOUTH BEND Model A Type CL644R 9” x 4-1/2’ Bed Bench Model Engine Lathe
Manufacturer SOUTH BEND
Model A Type CL644R
Year 1961
Description
  • Swing Over Bed Ways: 9-1/4”
  • Swing Over Cross Slide: 5-1/2”
  • Distance Between Centers: 34”
  • Spindle Speeds (12): 50 to 1270 RPM
  • Spindle Nose: Threaded- 1-1/2” x 8 Thds.
  • Hole Thru Spindle: ¾”
  • Spindle & Tailstock Taper: #2 MT
  • Thread Range (48): 4 to 224 TPI
  • Feed Range (48):
    • Longitudinal: .0015 to .0853 IPR
    • Cross: .0004 to .0255 IPR
  • Cross Slide Travel: 5-7/8”
  • Top Slide Travel: 2-1/4”
  • Travel of Tailstock Quill: 2-1/16”

Equipment

  • 3-Jaw Universal Chuck
  • 4-Jaw Independent Chuck
  • Steady Rest
  • Lever Type Collet Attachment with 5C Collets
  • Aloris Quick Change Toolpost with Holders

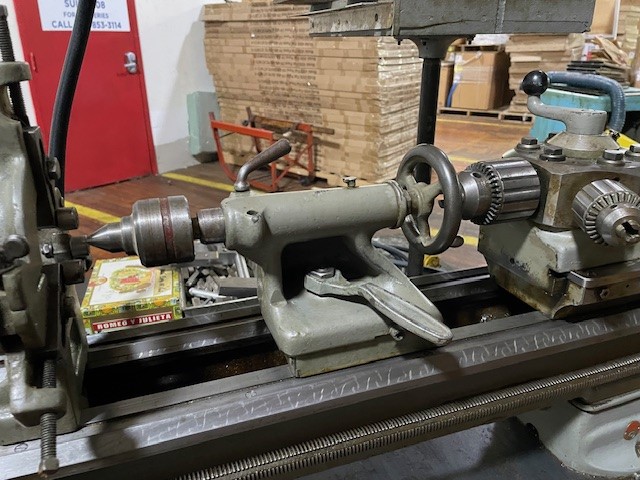

  • Standard Tailstock

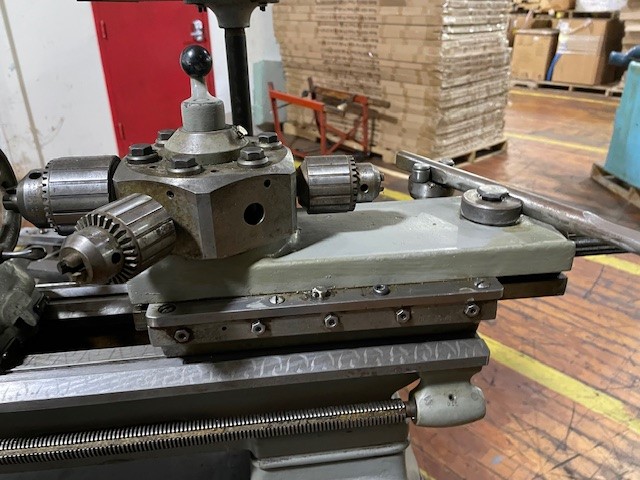

  • 6-Position Bed Turret with Tooling
  • Micrometer Carriage Stop
  • Face Plate
  • Live Center
  • Drill Chuck
  • Work Light

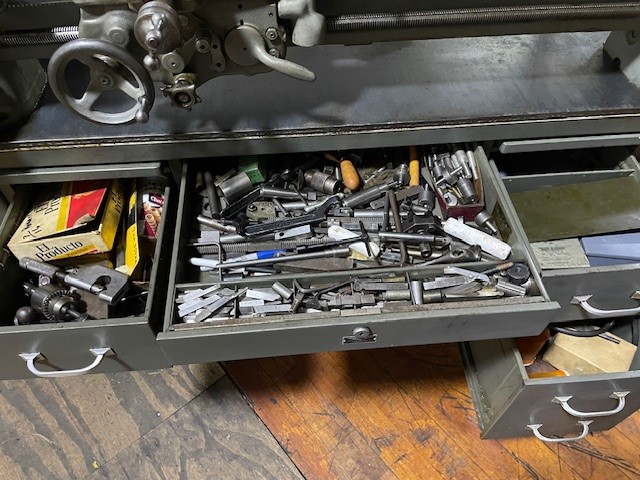

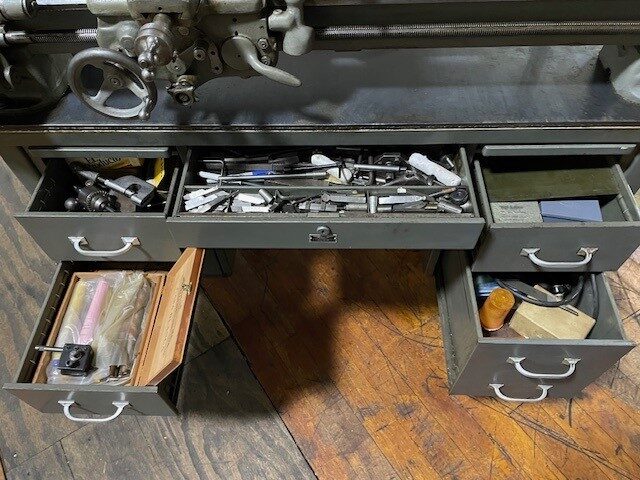

  • Cabinet Base with Large Assortment of Miscellaneous Tooling
  • Motor and Controls: ½ HP 1/60/115 Volt AC
  • Floor Space: 60” L-R x 30” F-B x 48” High
  • Weight: 700 Lbs. (Approx.)

Machine New 1961 – Purchased New by Single Owner – Excellent Condition

Stock #7772P
Serial #46799

Price $4,250.00
