• Swing Over Bedways: 13-1/8”
• Swing Over Cross Slide: 8”
• Distance Between Centers: 39”
• Spindle Bore: 1-3/8”
• Spindle Nose – Threaded: 2-1/4-8
• Steps on Spindle Cone Pulley: 4
• Spindle Speeds (8): 40 to 940 RPM
• Cross Slide Travel: 8-1/4”
• Compound Rest Travel: 3-1/8”
• Thread Range (48): 4 to 224 TPI
• Feed Range (48)
  • Longitudinal: 0.0015 to 0.01841 IPR
  • Cross: 0.0006 to 0.0315 IPR
• Lead Screw Diameter & Threads: 1” – 6 TPI
• Tailstock Center Taper: #3 MT
• Tailstock Quill Travel: 4-1/4”
• Tailstock Set Over (For Taper Turn): 15/16”

Equipment

• 3 Jaw Universal Chuck
• 4-Jaw Independent Chuck
• 6-Jaw Universal Chuck
• Face Plate
• Aloris Quick Change Toolpost with Assorted Holders
• Micrometer Carriage Stop
• Taper Attachment
• Steady Rest
• Follower Rest
• 5C Lever Type Collet Closer with Assorted 5C Collets
• 5C Collet Rack Mount

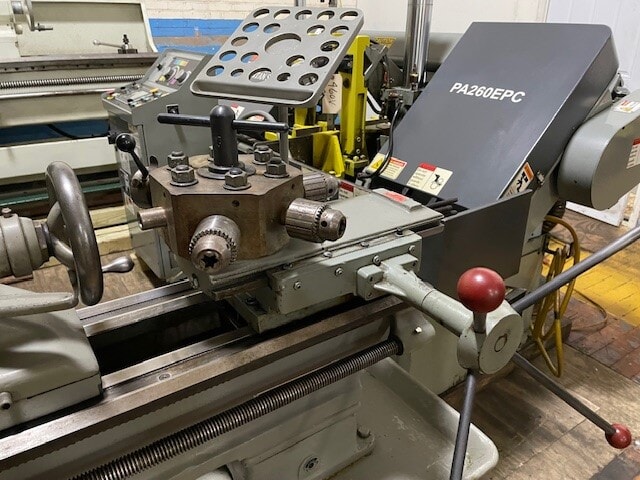

• 6-Position Bed Turret with Holders, Drill Chucks, Die Head & Misc. Tooling
• Motor and Controls: 2 HP 1/60/220 Single Phase
• Floor Space: 80” L-R x 40” F-B x 50” High
• Weight: 1,800 Lbs. (Approx.)

NOTE: Machine Purchased NEW by Single Owner/Operator Home for Home Hobby Shop- Excellent Condition!

Stock #7771P
Serial #16008
