• Swing Over Bed: 13”
• Swing Over Cross Slide: 7-25/32”
• Swing Through Gap: 18-3/4”
• Length of gap: 8”
• Distance Between Centers: 40”
• Spindle Bore: 1-3/8”
• Spindle Mount: D1-4 Camlock
• Spindle Speeds (8): 70 to 2000 RPM
• Longitudinal Feeds (40): .0036 to .0325 “/Rev.
• Cross Feeds (40): .0012 to .0345”/Rev.

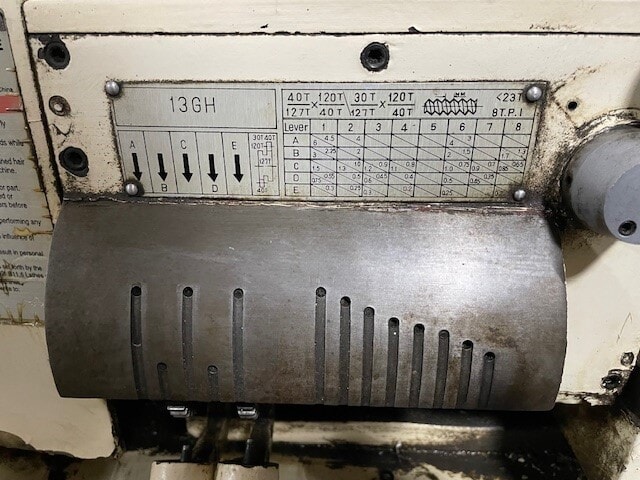

• Thread Range (Inch) (40): 4 to 112 TPI
• Thread Range (Metric) (27): 0.2 to 6 mm
• Compound Slide Travel: 2-11/16”
• Cross Slide Travel: 6-15/16”
• Carriage Travel: 35”
• Taper in Tailstock Spindle: #3 MT
• Tailstock Spindle Travel: 3-3/4”

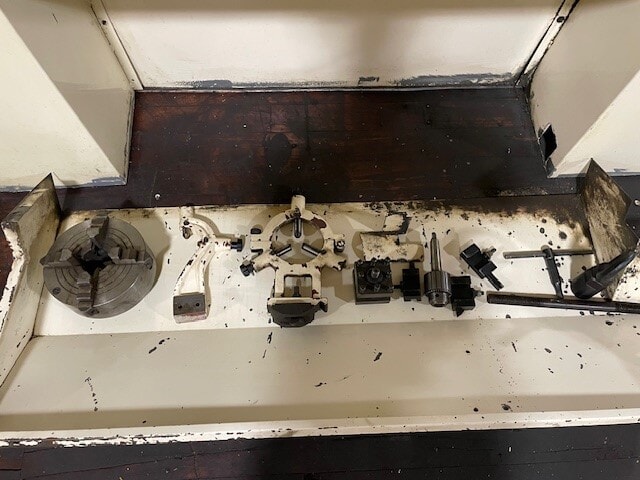

Equipment

• 6” 3-Jaw Chuck
• 8” 4-Jaw Chuck
• Steady Rest
• Follow Rest
• Thread Dial
• 4-Way Toolpost

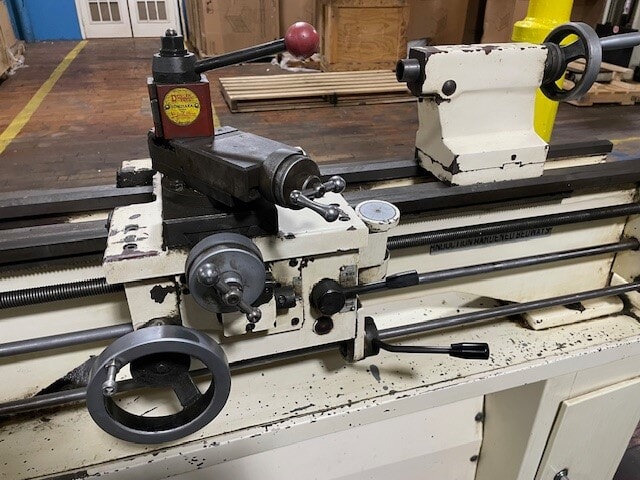

• Quick Change Toolpost with (3) Holders
• Key Chuck with Adaptor
• Chip Pan
• Rear Splash Guard
• Cabinet Base
• Motor and Controls: 2 HP 1/60/220 Volt AC
• Floor Space: 71” L-R x 32” F-B x 47” High
• Weight: 1,015 Lbs. (Approx.)

Stock #7769P
Serial #707Z909
