• Screen Diameter: 14”
• Size of Work Table: 5” x 15”
• Longitudinal Table Travel (X-Axis): 6.5”
• Vertical Table Travel (Z-Axis): 4.1”
• Cross Travel for Focusing: 3”
• Angular Measuring Capacity: 360 Degree Chart Rotation

Equipment

• Tungsten Halogen Projection
• Fiber Optic Surface Illumination
• 10X Lens
• Digital Angle Display

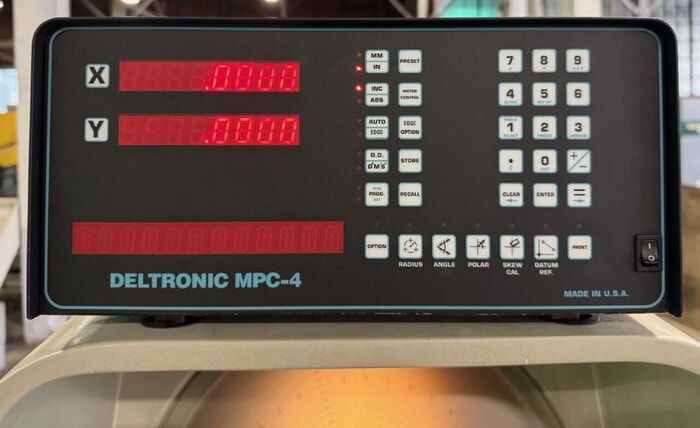

• Deltronic MPC4 2-Axis Computational Digital Readout System with Glass Scales
• Electrical: 1/60/110-120 Volt AC
• Floor Space: 24” L-R x 52” F-B x 45” High
• Weight: 220 Lbs. (Approx.)

Stock #7768P
Serial #A98041914
