• Actual Swing Over Bed and Carriage Ways: 26”
• Swing Over Cross Slide: 18-1/4”
• Distance Between Centers: 96”
• Spindle Speeds (12): 18 to 720 RPM
• Diameter Hole Thru Spindle: 2-3/16”
• Spindle Nose: L-2

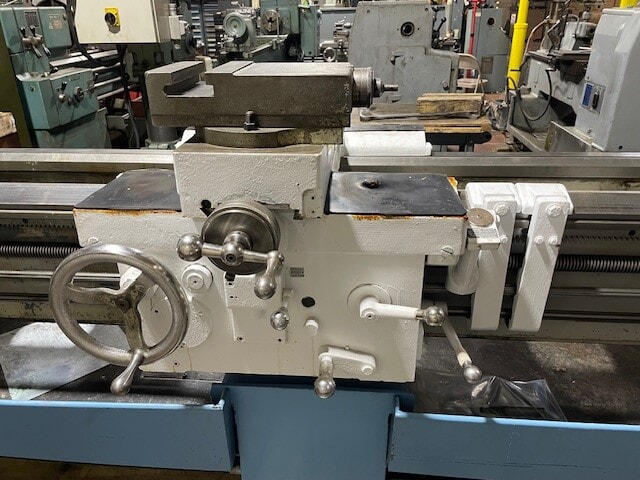

• Cross Slide Travel: 13-1/4”
• Compound Rest Travel: 4-3/4”

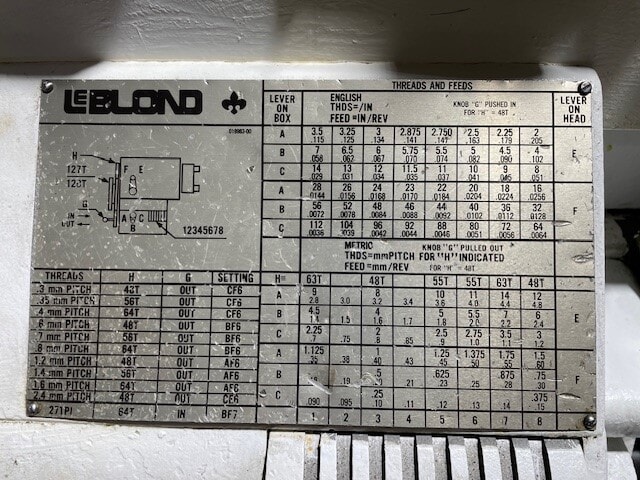

• Feed Rates (48): .0036 to .205 In/Rev.
• Thread Changes (48): 2 to 112 Thds/Inch

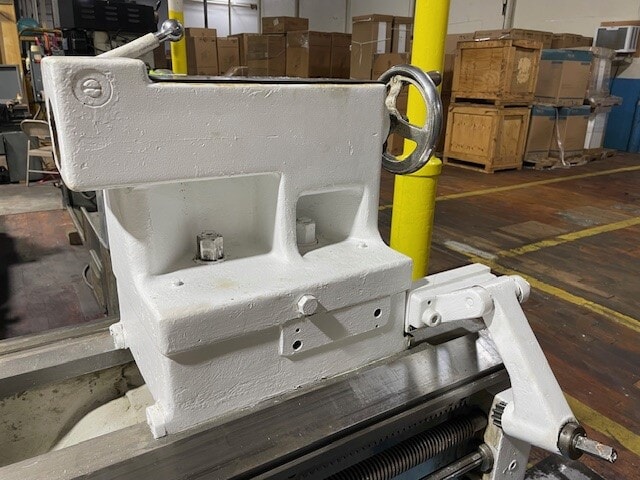

• Tailstock Spindle Taper: #5 MT
• Tailstock Spindle Travel: 7-1/2”

Equipment

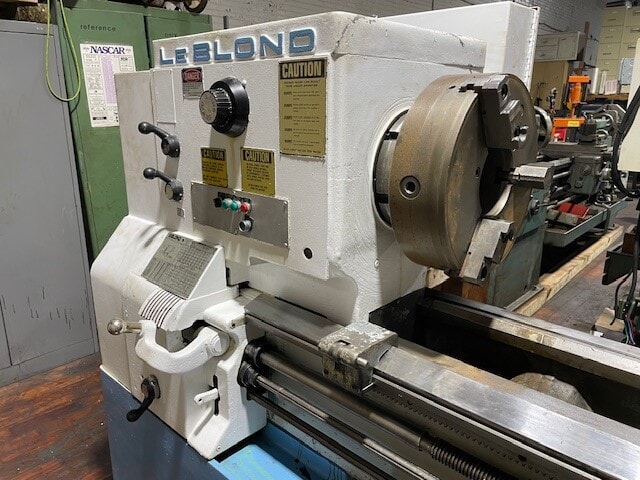

• 12” 3-Jaw Universal Chuck

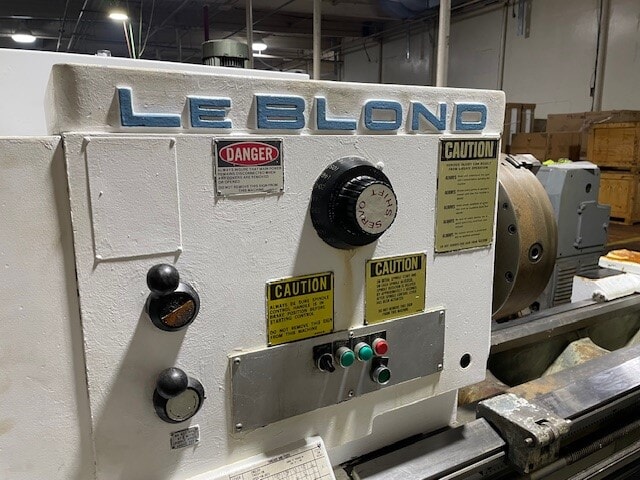

• Servo-Shift Headstock
• Inch/Metric Threading
• Coolant System

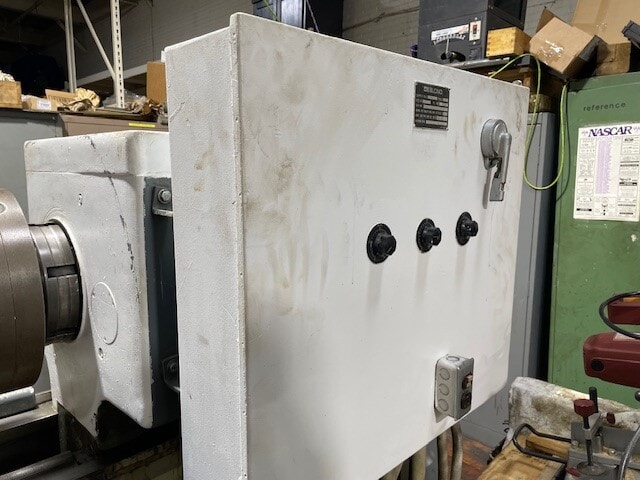

• Motor and Controls: 15HP 3/60/220-440 Volt AC
• Floor Space: 168” L-R x 50” F-B x 56” High
• Weight: 7,080 Lbs. (Approx.)

Stock #7765P
Serial #7H-1090
