• Table Size: 10” x 50”
• Longitudinal Table Travel: 36” (30” with Power Feed)
• Cross Feed of Table: 16”
• Vertical Feed of Knee: 16”
• Quill Diameter: 3-3/8”
• Quill Travel: 5”
• Quill Feeds (3): 0.0015, 0.003, 0.006 IPR
• Head Tilt
  • 90 Degrees Left or Right
  • 45 Degrees Front
  • 38 Degrees Back

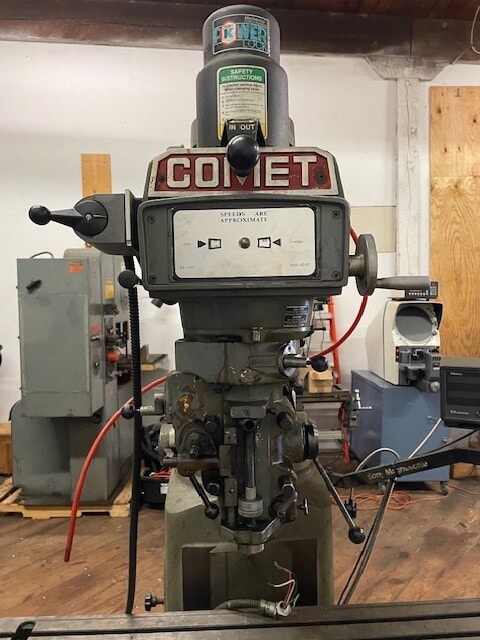

• Spindle Speeds (Infinitely Variable): 60 to 4200 RPM (Hi & Lo Ranges)
• Spindle Taper: R-8

Equipment

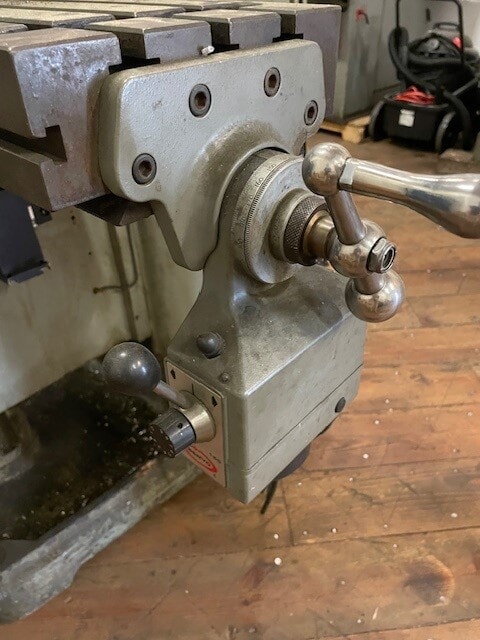

• Power Longitudinal Feed

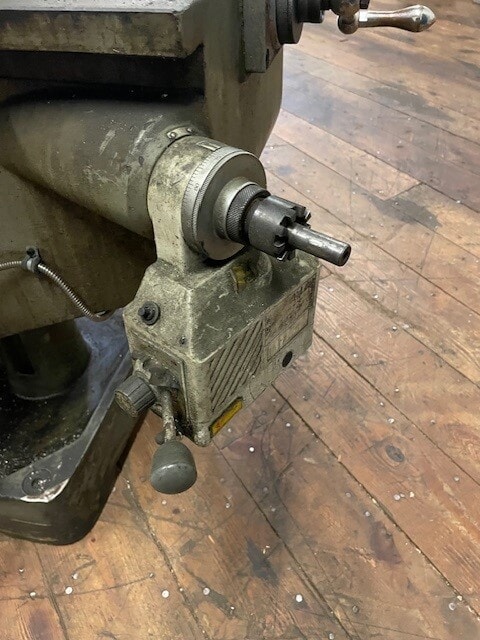

• Power Vertical Feed to Knee
• Kurt Manual Power Draw Bar

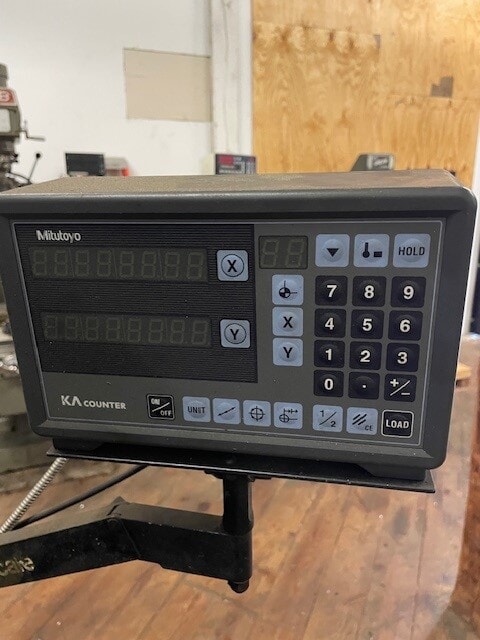

• Mitutoyo Model KA 2-Axis Digital Readout System with Glass Scales
• Square Ways on Column and Cross Travel
• Motor and Controls: 3 HP 3/60/220-440 Volt AC- Set for 220 Volt Operation
• Floor Space: 67” L-R x 63” F-B x 71” High
• Weight: 3,300 Lbs. (Approx.)

Stock #7764P

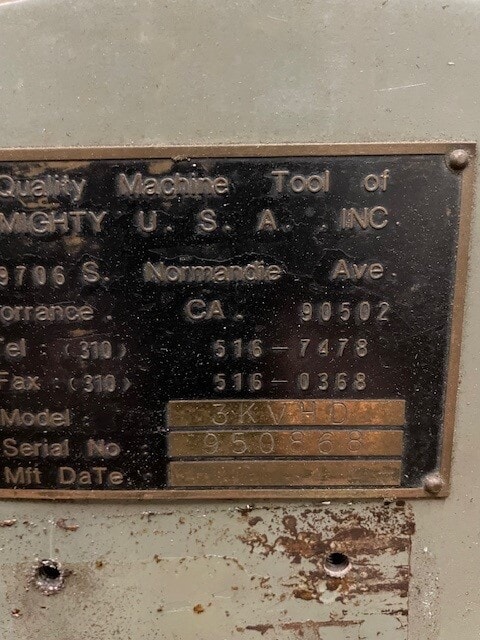

Serial #950868
