• Capacity, Round: 10.0” Diameter
• Capacity, Rectangle: 12” W x 10” High
• Blade Size: 12’11” L x 1.34” W x 0.043” Thick
• Blade Speed: 65 to 330 SFPM
• Blade Tension: Hydraulically Controlled
• Shuttle travel, Single: 15.7”
• Multiple Shuttle Travels: 141.7”
• Hydraulic Pressure: 427 PSI
• Blade Tension Pressure: 30,000 t0 32,000 PSI
• Gage Pressure: 171 to 213 PSI
• Coolant Tank Capacity: 22.5 Gallons

Equipment:

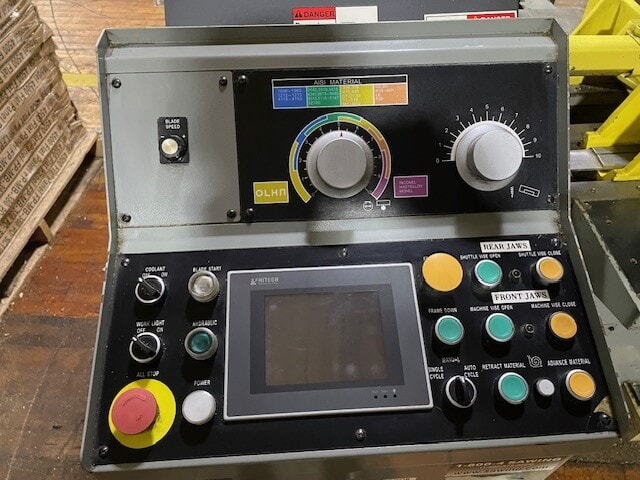

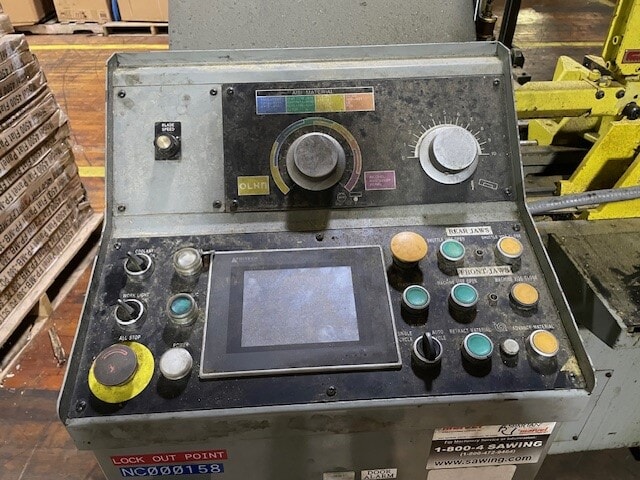

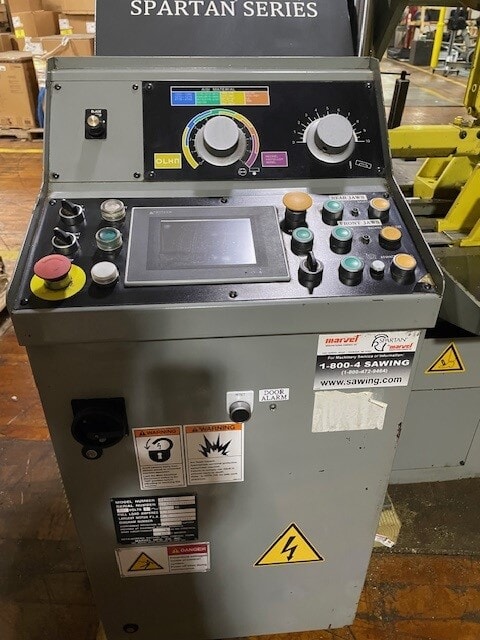

• Marvel EPC Programmable Control System

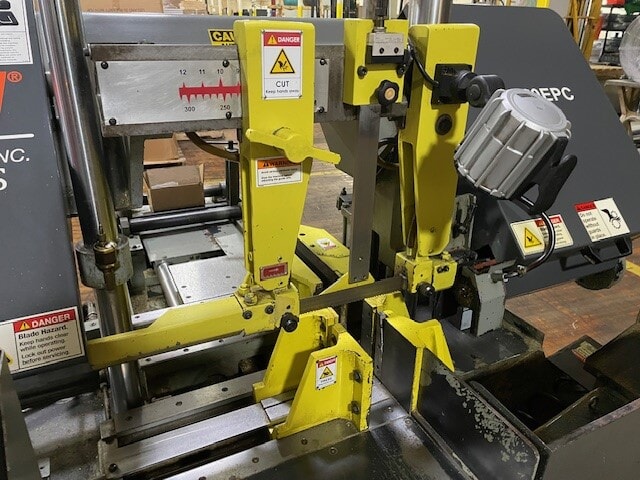

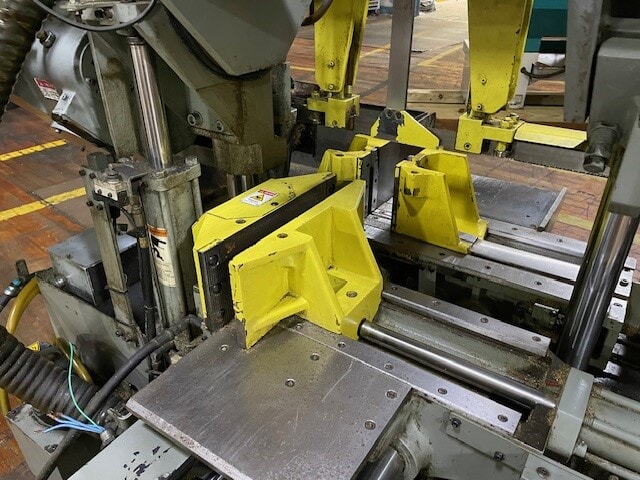

• Hydraulic Full Stroking Front & Rear Vise Jaws

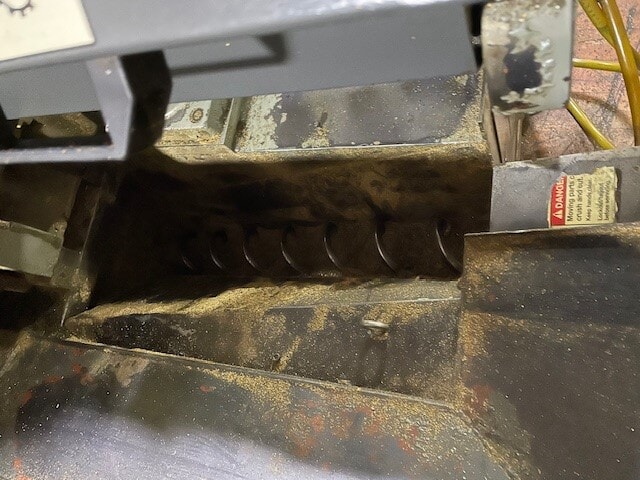

• Chip Auger
• Wash Down Hose
• Leveling Screws & Pads

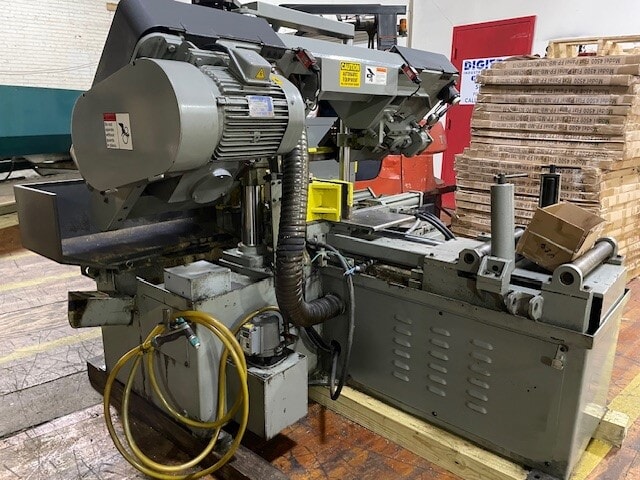

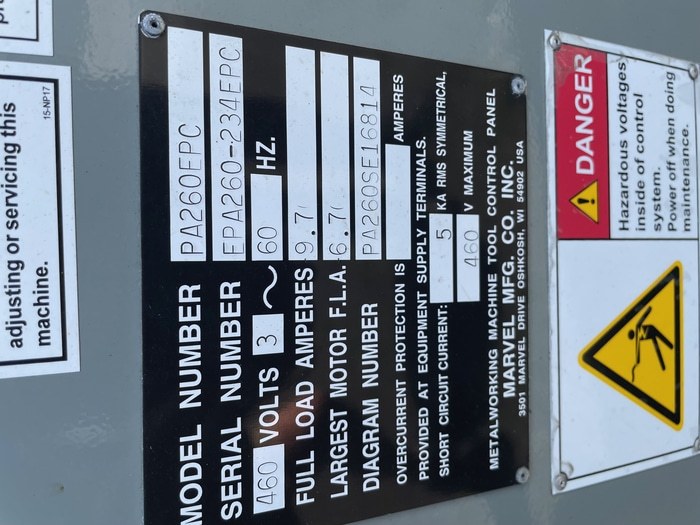

• Motor and Controls: 5 HP 3/60/230-460 Volt (Set for 460 Volt Operation)
• Hydraulic Drive Motor: 1 HP
• Coolant System Motor: 0.13 HP
• Floor Space: 82” L-R x 130” F-B x 59” High
• Weight: 3,860 Lbs. (Approx.)

Stock #7763P

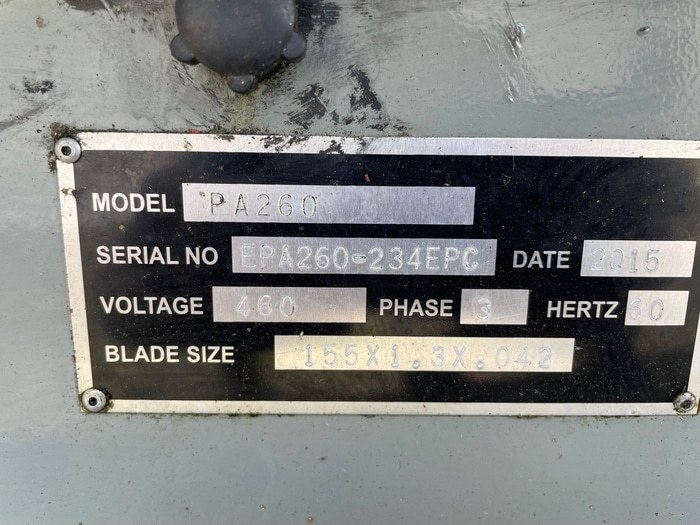

Serial #EPA260-234EPC
