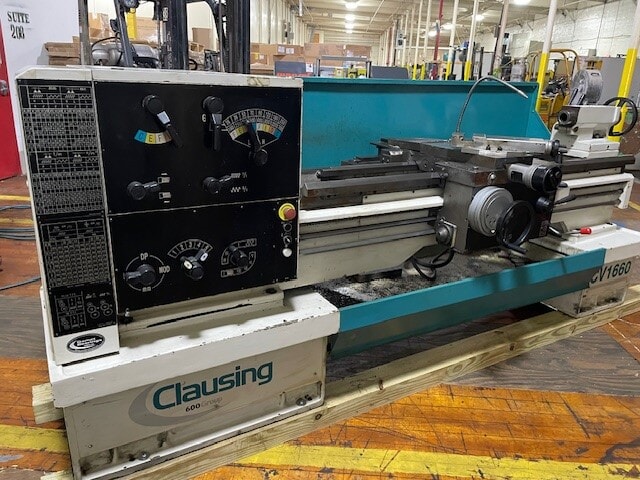

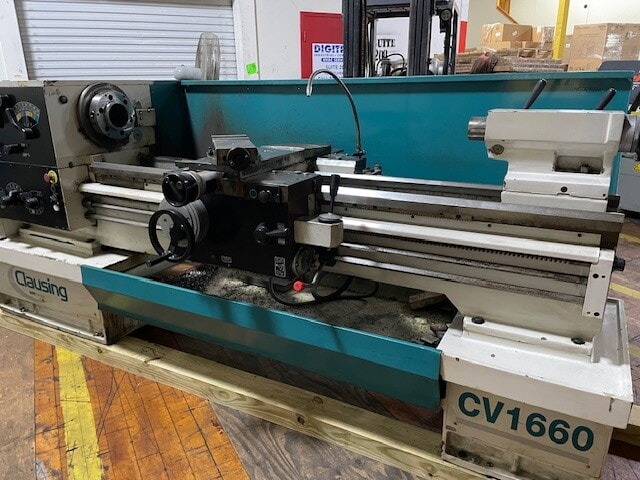

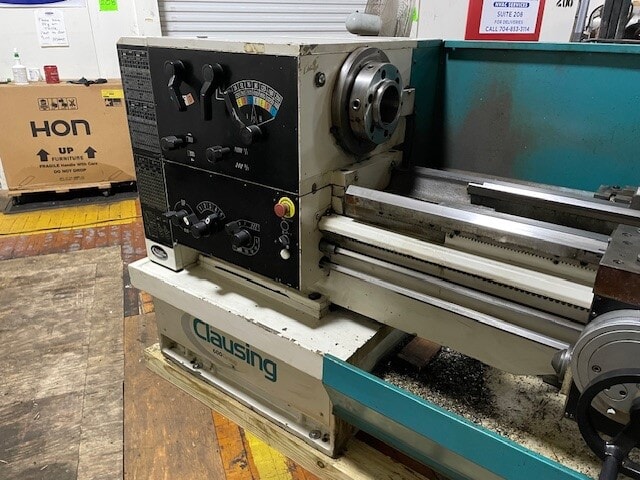

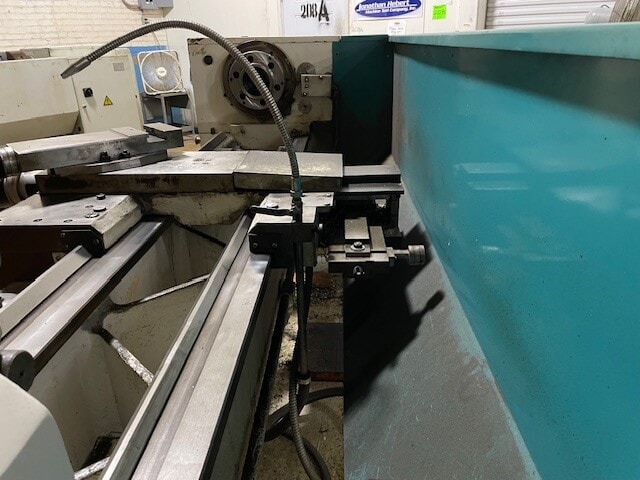

Machine - CLAUSING COLCHESTER Model CV-1660 16” x 60” Precision Geared Head Engine Lathe
Manufacturer CLAUSING
Model CV-1660
Year 2006
Description
  • Swing Over Bed Ways: 16”
  • Swing in Removable Gap: 27-1/2”
  • Swing Over Cross Slide: 10”
  • Distance Between Centers: 60”

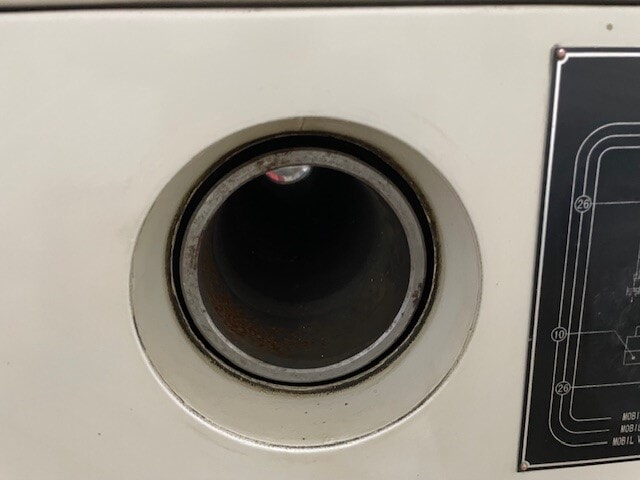

  • Spindle Bore (Hole Thru Spindle): 4-1/8”
  • Spindle Bearings: Gamet
  • Spindle Nose: D1-8 Camlock

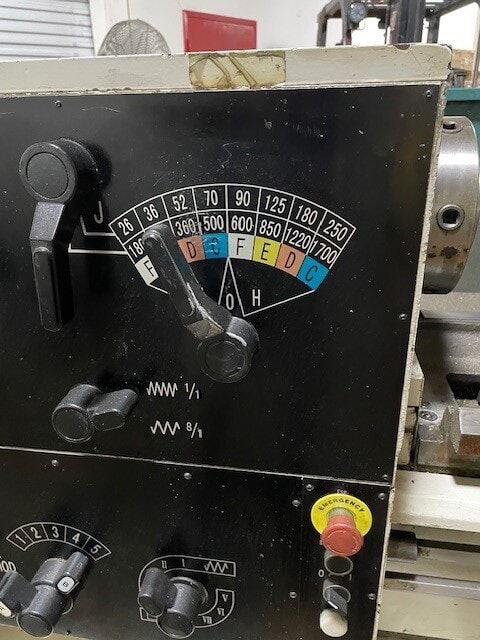

  • Spindle Speeds (16): 26 to 1700 RPM
  • Feed Range
    • Longitudinal: .044 to 1.48 mm/Rev.
    • Cross: .022 to 0.74 mm/Rev.
  • Thread Range
    • Inch (47): 7/16 to 80 TPI
    • Metric: 0.35 to 80 MM
  • Cross Slide Travel: 13-3/4”
  • Longitudinal Rapid Traverse Rate: 5 mm/min.
  • Cross Travel Rapid Traverse Rate: 2.5 mm/min.
  • Taper in Tailstock: #5 MT
  • Tailstock Quill Travel: 6”

Equipment

  • 12” 3-Jaw Chuck with 2-Piece Reversible Hard Top Jaws
  • Telescopic Taper Attachment
  • Threading Dial
  • Inch/Metric Universal Gear Box
  • Rapid Traverse to the Carriage & Cross Slide

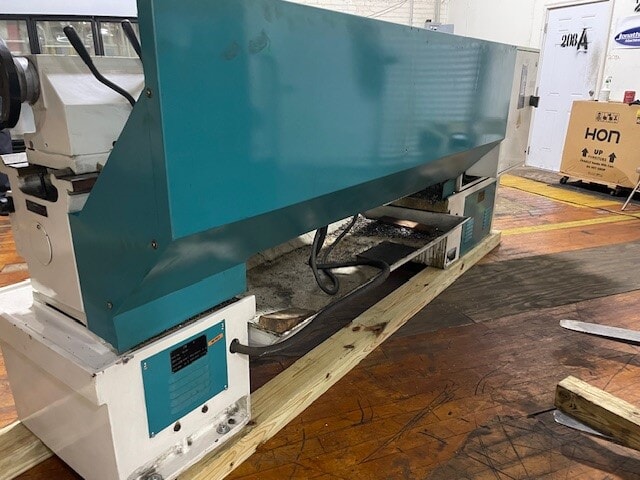

  • Full Length Rear Splash Guard
  • Coolant System
  • Motor and Controls: 10 HP 3/60/230-460 Volt AC- Currently Wired for 460 Volt Operation
  • Coolant Motor: 1/5 HP
  • Floor Space: 123” L-R x 46” F-B x 50” High
  • Weight: 5,500 Lbs. (Approx.)

Stock #7761P
Serial #1748

Price $16,950.00
