• Swing Over Bed Ways: 22”
• Swing Over Cross Slide: 13”
• Swing in Removable Gap: 32”
• Length of Gap: 10-1/4”
• Distance Between Centers: 80”
• Cross Slide Travel: 13-3/4”

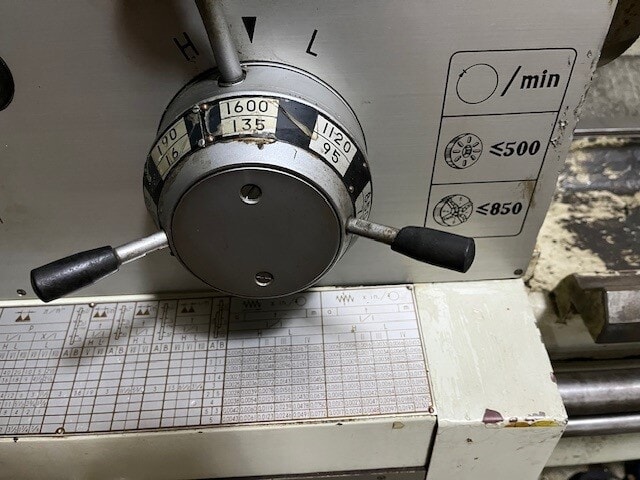

• Spindle Speeds (16): 16 to 1600 RPM
• Spindle Bore (Hole Thru Spindle): 3-3/16”
• Spindle Nose: D1-8 Camlock
• Thread Range
  • Inch (49): 7/16 to 80 TPI
  • Metric (37): 0.5 to 80 mm
• Feeds
  • Longitudinal (54): .0015 to .0772 IPR
  • Cross (54): .0006 to .0303 IPR
• Rapid Traverse
  • Longitudinal: 4 Meters/Minute
  • Cross: 1.15 Meters/Minute
• Taper in Tailstock Spindle: #5 MT

Equipment

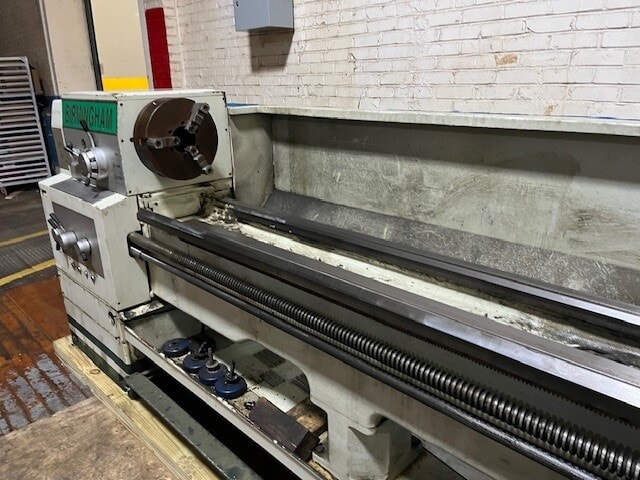

• 12” 3-Jaw Universal Chuck with 2-Piece Reversible Hard Top Jaws
• Taper Attachment
• Threading Dial
• Coolant System
• Full Length Rear Splash Guard
• Foot Brake
• Copy of Operators Manual

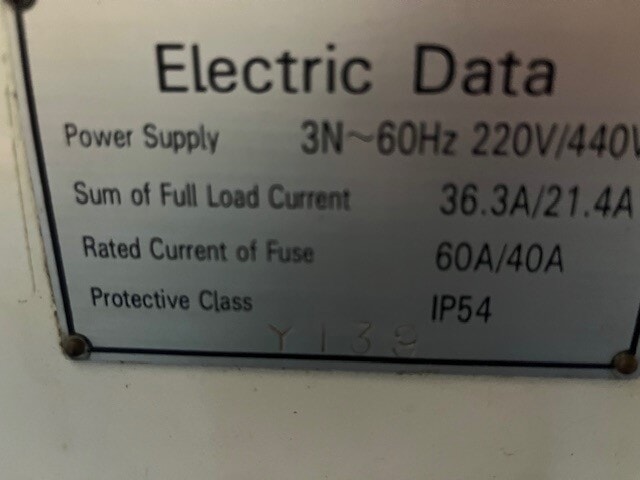

• Motor and Controls: 10HP 3/60/230/460 Volt – Set for 460 Volt Operation
• Coolant Motor: 1/8 HP
• Rapid Traverse Motor: 1/3 HP
• Floor Space: 144” L-R x 48” F-B x 56” High
• Weight: 5,754 Lbs. (Approx.)

Stock #7760P

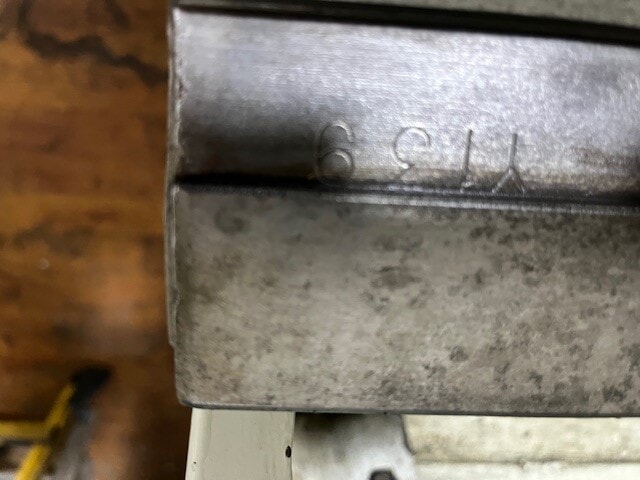

Serial #Y139
