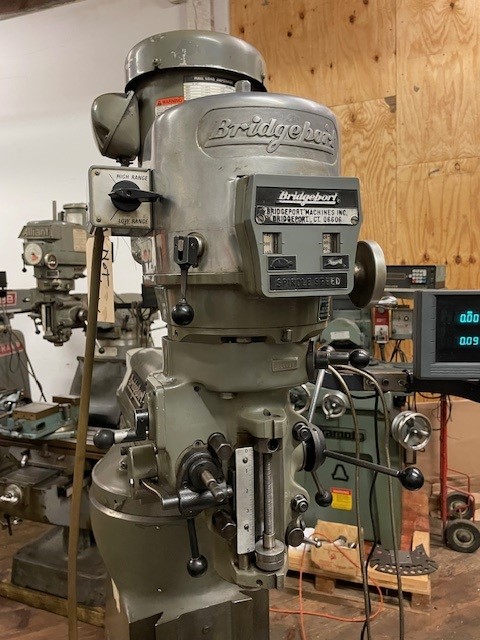

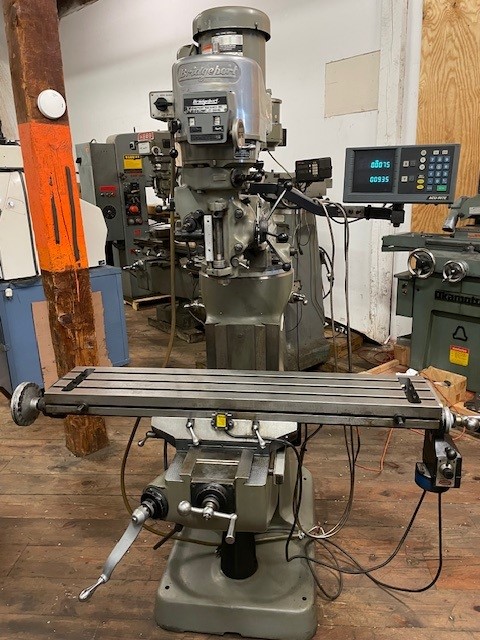

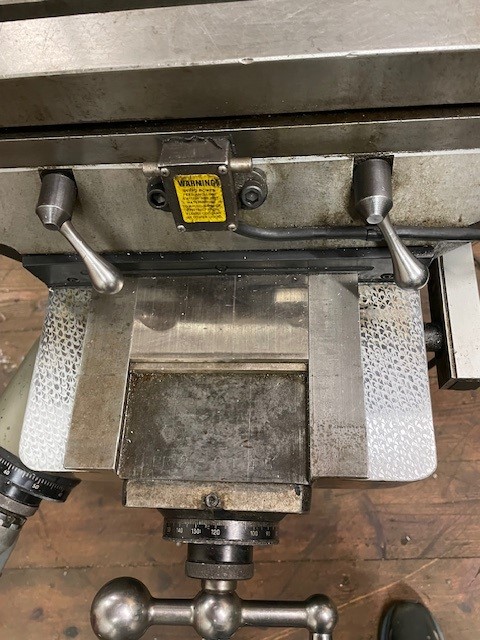

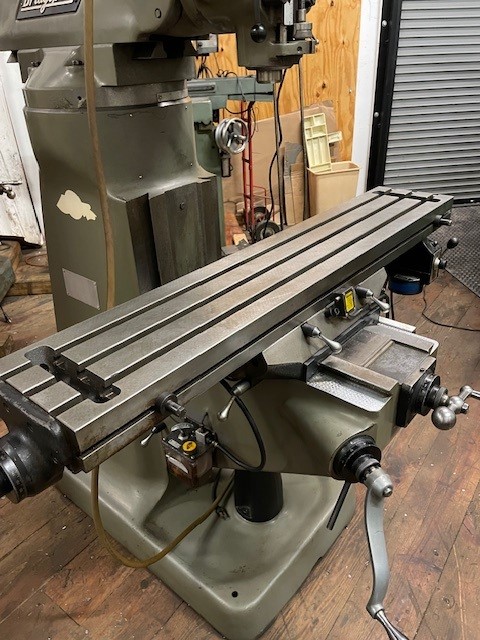

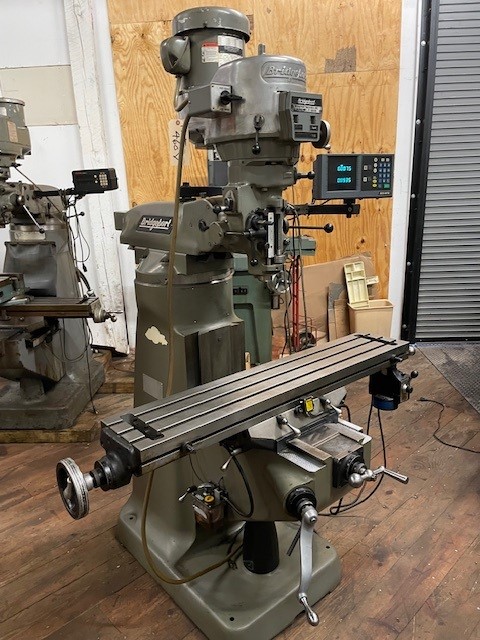

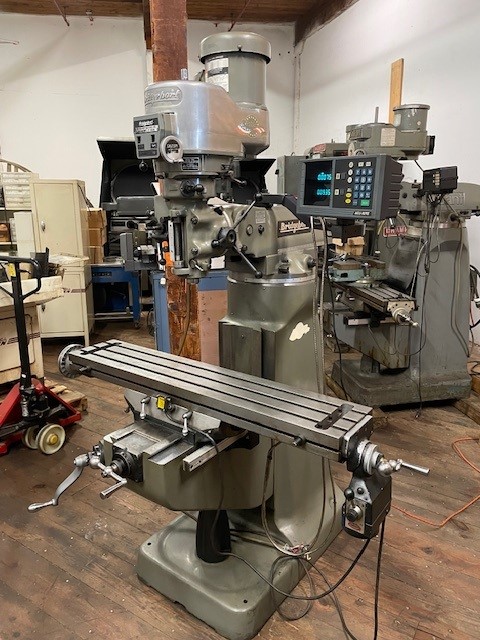

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine

Machine - BRIDGEPORT Series I 2 HP Variable Speed Ram Type Vertical Milling Machine
Manufacturer BRIDGEPORT
Model Series I 2HP
Year 2000
Description

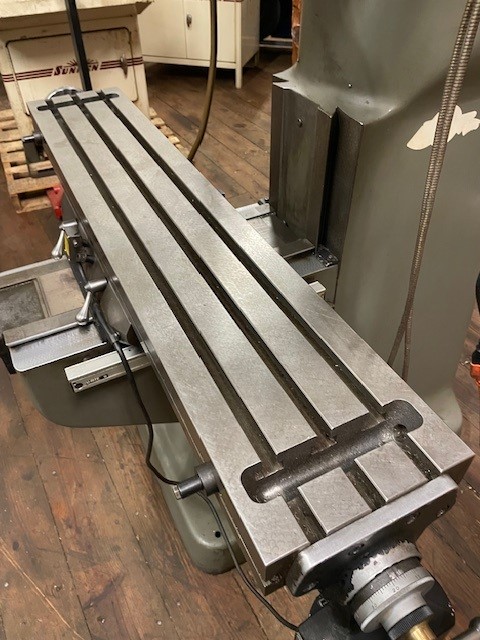

  • Table Working Surface: 9” x 48”
  • Longitudinal Table Travel: 36”
  • Cross Table Travel: 12”
  • Vertical Travel of Knee: 16”
  • Overarm (Ram) Travel: 12”
  • Spindle Taper: R-8
  • Spindle Speeds (Infinitely Variable): 60 to 4200 RPM (Hi-Lo Ranges)
  • Quill Feeds (3): .0015, .003, .006 IPR
  • Quill Diameter: 3-3/8”
  • Overarm/Head Swivel on Turret: 360 Degrees
  • Head Tilts, Left to Right: 90 Degrees
  • Head Tilts, Front to Back: 45 Degrees

Equipment

  • Power Longitudinal Feed with Rapid Traverse
  • Chrome Ways

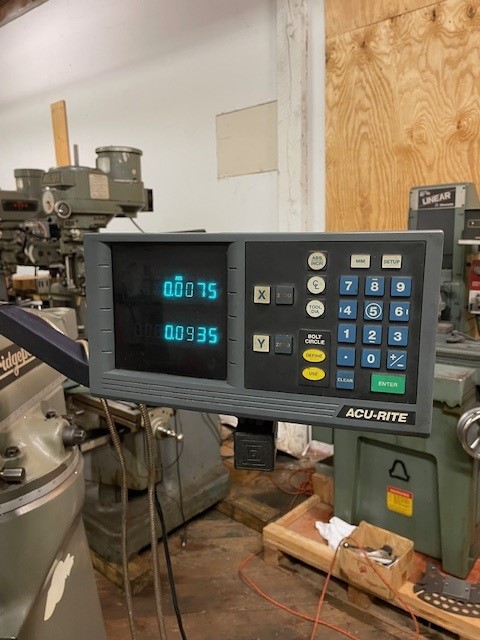

  • Acurite 2-Axis Digital Readout System with Glass Scales
  • One-Shot Lubrication
  • Draw Bar
  • Misc. Collets & Table Clamping Kit
  • Motor and Controls: 2 HP 3/60/230-460 Volt AC
  • Floor Space: 75” L-R x 65” F-B x 83” High

Weight: 2,100 Lbs. (Approx.)

Stock #7752P
Serial #BR282145

Price $14,500.00
