• Table Size: 5” x 32”
• Table Stoke Length: 0.4” to 15”
• Swing Diameter Over Table: 14”
• Distance Between Centers: 10”
• Z-Axis Travel: 15”
• X-Axis Travel: 7”
• Work Spindle Speed (Variable): 40 to 450 RPM
• Workhead Swivels: 0 to 90 Degrees
• Wheelhead Swivels: 0 to 40 Degrees – Either Direction

Machine Features

• Siemens Sinumerik 810D CNC Controls with Continuous Path Contouring
• 10.4” TFT Color Display with Numeric CNC Keypad
• Alphanumeric & Symbols
• Controller Integrated Keyboard

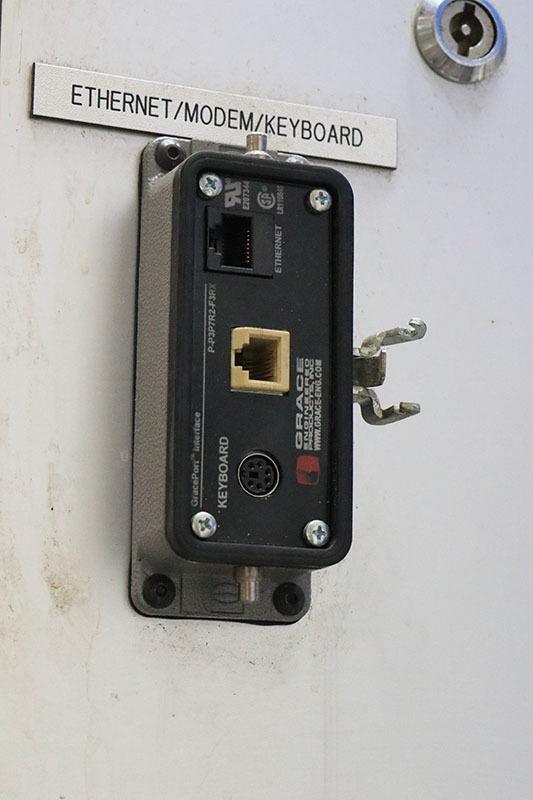

• Ethernet, RS-232, 3.5” Floppy Drive
• Incremental & Absolute
• Inch & Metric
• (2) Optional Macro Screens
• Remote Diagnostics is Standard

Equipment

• O.D. Grinding Wheelhead, 12” Grinding Wheel with Variable Spindle Speeds
• (2) P-M I.D. Grinding Spindles: 15,000 Max RPM & 25,000 Max RPM
• 8” Suburban RMC-FP Fine Pole Magnetic Chuck
• Table Mounted Single Point Dresser
• 10” 3-Jaw Chuck with Adaptor Plate
• 5C Collet Draw Bar for 5C Collets
• Model 3090 Workhead: Variable Speed
• (3) Separate Pulse Generators: X,Z,C  Axes
• Tailstock
• Operators Manuals
• Coolant System with Paper Filtration
• 5 HP Wheelhead Motor, AC Servo
• 2 HP Workhead Motor, AC Servo
• Siemens Made Variable Speed Drives
• Machine wired for 3/60/460 Volt- Multi-Tap Transformer in Electrical Cabinet for Other Voltages
• Floor Space: 73” L-R x 59” F-B
• Weight: 3,500 Lbs. (Approx.)

Stock #7732P
Serial #0000-55-7CC-04
