• Swing Over Bed & Carriage Ways – 19-1/4”
• Swing Over Cross Slide – 12-1/4”
• Distance Between Centers – 54”
• Spindle Speeds (12) – 40 to 1600 RPM
• Hole Thru Spindle – 3-1/16”
• Spindle Nose – L-2

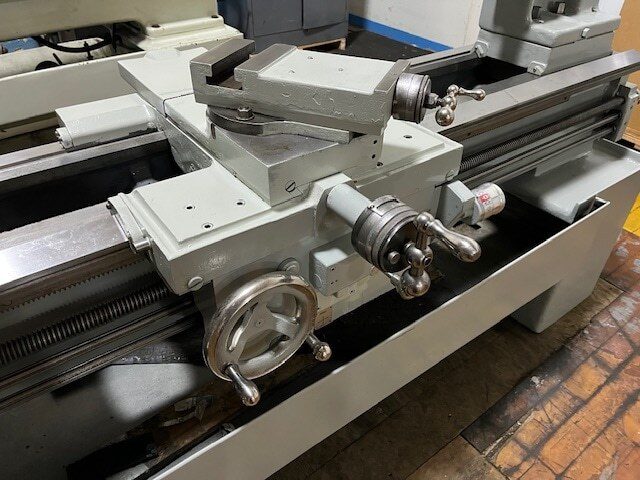

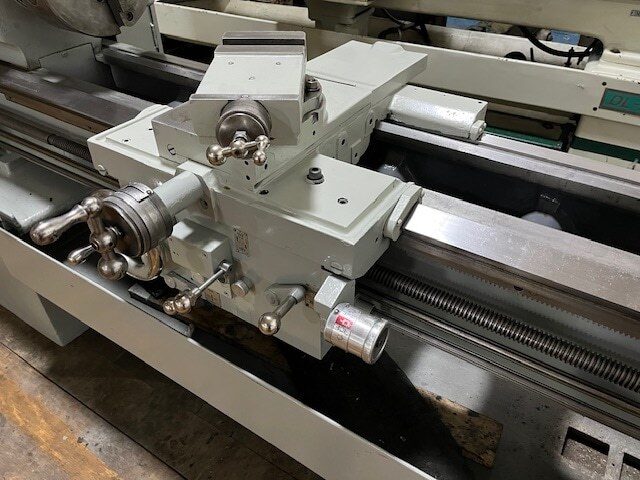

• Cross Slide Travel – 11-1/4”
• Compound Rest Travel – 4-3/8”
• Feeds (48) – .0018 to .104 IPR
• Threads
  • Inch (Gear Drive Only)-(48) – 2 to 112 TPI
  • Metric (Gear Drive Only)-(16) – .25 to 12 mm

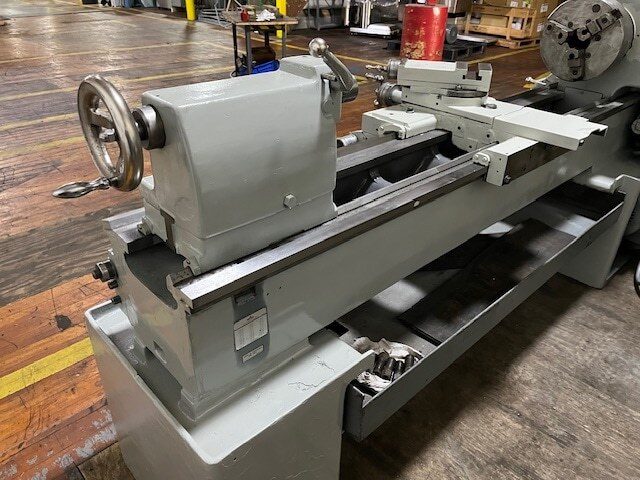

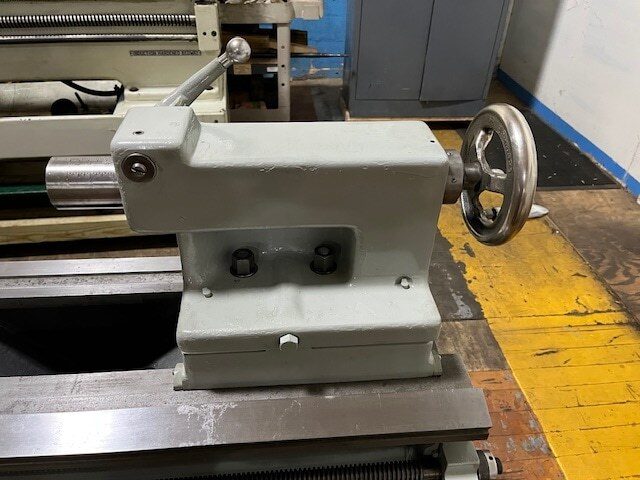

• Tailstock Spindle Taper – # 4MT
• Tailstock Spindle Travel – 7”

Equipment

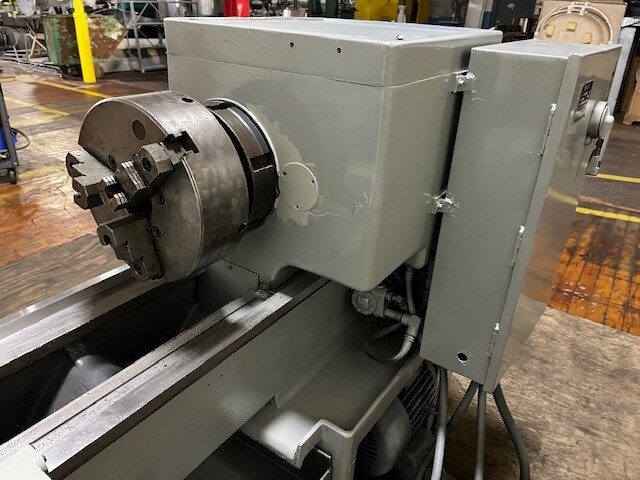

• 12”  3-Jaw Universal Chuck with Reversible Jaws
• 6” to 9-1/2” Capacity Steady Rest
• Full Length Rear Guard
• Hardened & Ground Replaceable Carriage Ways
• Threading Dial
• Micrometer Carriage Stop
• Inch/Metric Dials on Compound & Cross Slide
• Removeable Ship Pan
• Motor and Controls- 10 HP 3/60/230-460 Volt AC
• Floor Space- 113” L-R x 50” F-B
• Weight- 4,500 Lbs. (Approx.)

Stock #7718P
Serial #12E-266
